越南:全竹结构餐厅 竹建筑
这家位于越南中部沿海城市餐厅几乎全部由竹子建筑建成。竹建筑设计的特点是一个细长的船形屋顶,下面的用餐区完全向两边的元素开放。没有墙壁或隔墙,不仅允许微风通过结构,在炎热的天气冷却食客,还确保竹建筑与其环境建立密切联系。
this restaurant a coastal city in central vietnam, has been built almost entirely from bamboo. the design features an elongated boat-shaped roof, with the dining area below completely open to the elements on each side. the absence of walls or partitions not only allows breezes to pass through the structure, cooling diners during hot weather, but also ensures that the building establishes a close connection with its setting.
该竹餐厅由bambubuild设计和建造,bambubuild是一组竹子专家,他们直接与熟练的工匠合作。设计以简单的方式建造,最大限度地发挥了竹子的自然特性。模块化结构是预制的,然后在现场快速方便地组装。屋顶跨度7米(23英尺),而悬臂屋顶在建筑的外围创造了半室外空间。
the restaurant has been designed and constructed by bambubuild, a team of bamboo specialists who work directly with skilled craftsmen. built in a simple way, the design maximizes the natural characteristics of bamboo. the modular structure was prefabricated before being quickly and easily assembled on site. the roof spans 7 meters (23 ft), while the cantilevered roof creates a semi-outdoor space at the building’s periphery.

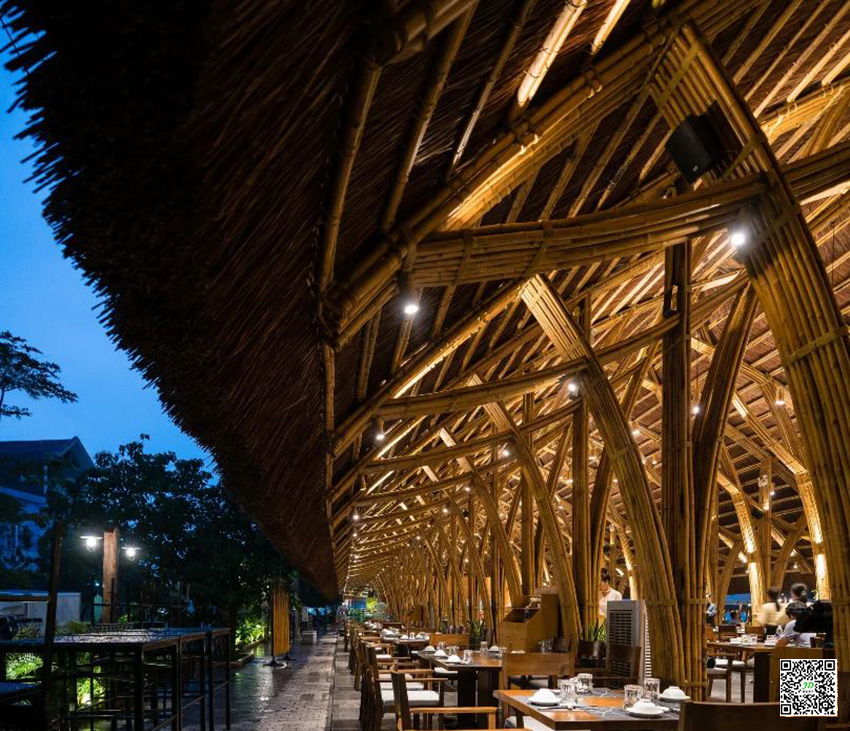

悬臂式竹屋顶在建筑的外围创造了一个半室外空间.
the cantilevered roof creates a semi-outdoor space at the building’s periphery.

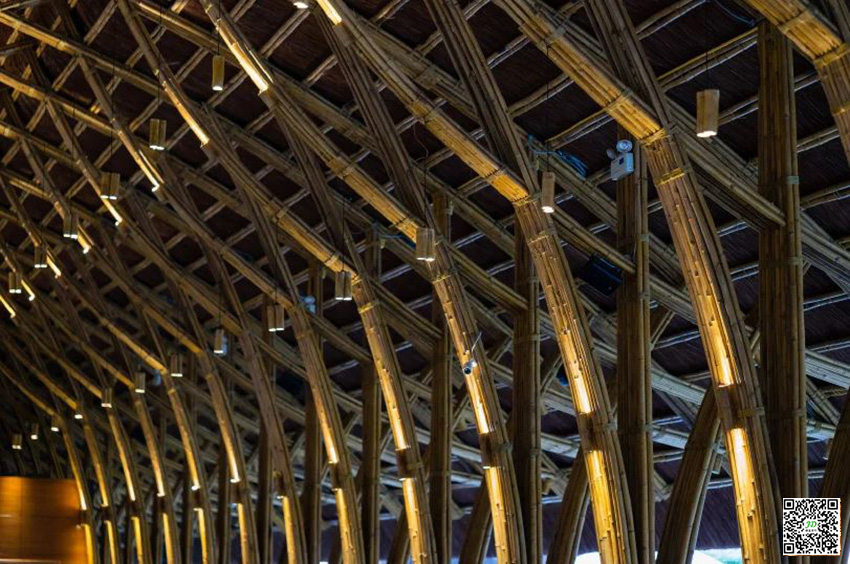

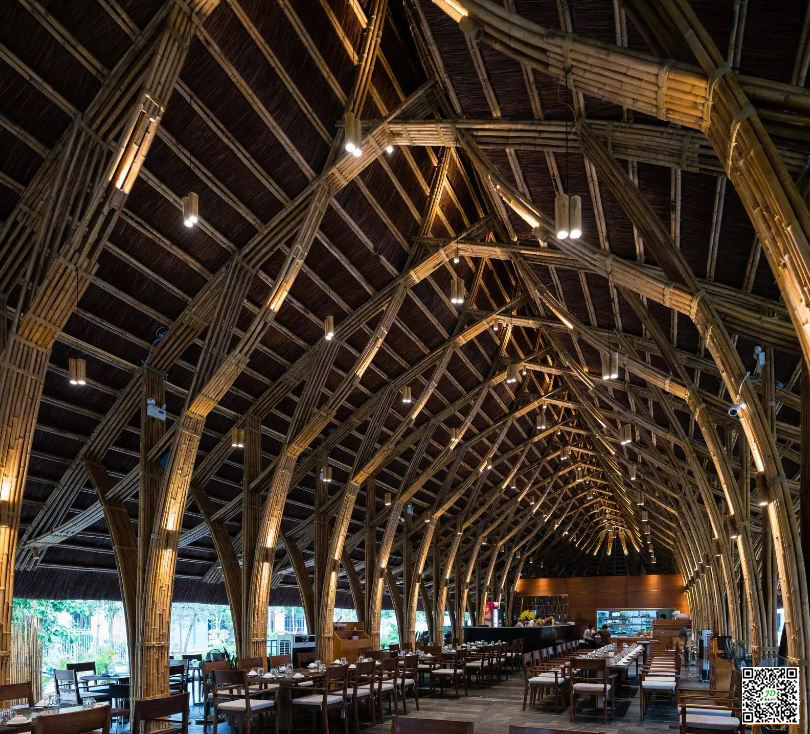

室内空间的节奏是由重复的竹框架来定义的.
the rhythm of the interior space is defined by repeated bamboo frames.

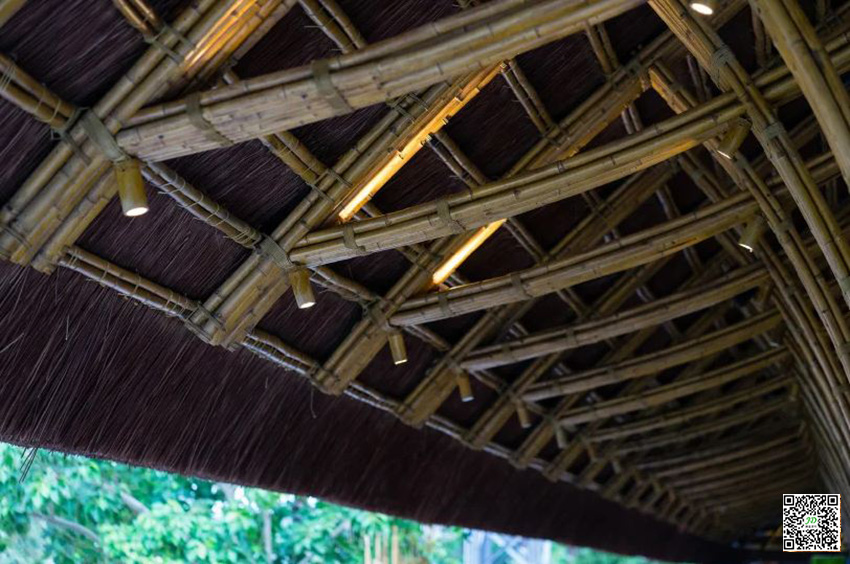

竹结构采用竹螺栓和聚酯绳捆绑连接
the structure is connected using bamboo bolts and polyester rope lashing
没有墙壁或隔墙可以让微风通过.
the absence of walls or partitions allows breezes to pass through.
没有墙壁或隔墙可以让微风通过.
the structure is highly visible so that it is easy to detect signs of potential damage.

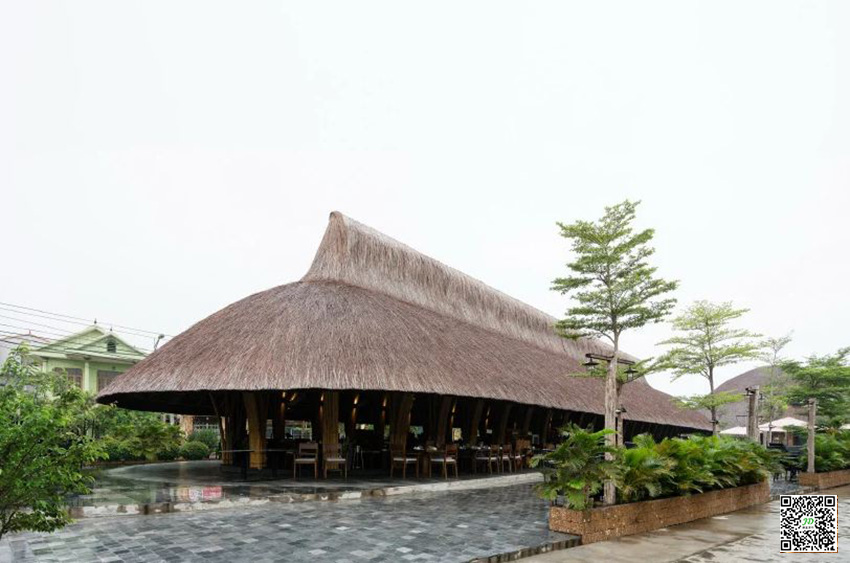

茅草屋顶保护竹子不受湿气和昆虫的侵袭.
the thatched roof protects the bamboo from moisture and insects.
